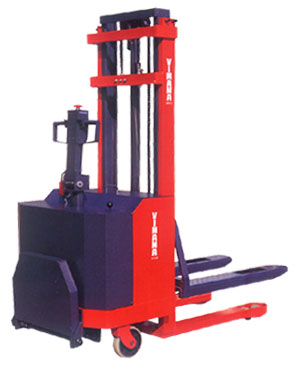

SL Series |
|
Features
: 2.Spring
loaded on drive wheel to allow wheel for firm contact to the ground
and anti-slip on wheel, thus last longer. 3.We
use large sized castor wheel to make the truck travel more steadily. 4.The
tandem wheel used for forks are to prevent any uneven floors. 5.All
drive wheels, transmissions and controllers are imported from European
and
American famous makers which are to give better quality and
reliability. 6.We
employ open style of design for easy repairs and maintenance. 7.Optional
for infinite control of speed to enable the truck to move smoothly. 8.The
whole machine is painted with powder coating to prevent rust and
corrosion. 9.
Micro-based battery
charger helps to prolong the battery life. 10.
Fork max. lifting
height is 6000mm. |
|
|
Model |
SL-1028 |
SL-1228 |
SL-1628 |
SL-2028 |
|
Loading
capacity
kg |
1000 |
1200 |
1600 |
2000 |
|
Load
center
mm |
600 |
|||
|
Fork
lowest position
mm |
90 |
|||
|
Fork
highest position
mm |
2800 |
|||
|
Mast
lowest position
mm |
1930 |
1980 |
||
|
Mast
highest position
mm |
3220 |
3270 |
||
|
Lifting
speed (unload/loaded)
m/min |
9.0/6.0 |
|||
|
Lowering
speed (unloaded/loaded) m/min |
Lower by
loaded weight, adjustment. |
|||
|
Traveling
speed (unloaded/ loaded)
km/hr |
5.5/4.5 |
5.5/4.5 |
6.0/5.0 |
7.0/5.5 |
|
Grade
ability (unloaded/loaded)
％ |
15/9 |
15/9 |
12/8 |
11/6 |
|
Min.
turning radius
mm |
1530 |
1630 |
||
|
Min.
90°stacking aisle width
mm |
1975 |
2130 |
||
|
Battery
capacity/5hr. (DC.24V)
AH |
166 (EB
class) |
240 (VS
class) |
||
|
Max. charging
current (DC.24V)
A |
20 |
40 |
||
|
Drive
motor (DC.24V)
W |
900 |
1300 |
1600 |
|
|
Speed control |
Resistor 3 speeds (stepless
optional) |
|||
|
Lift
motor (DC.24V)
W |
2000 |
3000 |
||
|
Steering
system |
Steering
arm |
|||
|
Steering
turning angle
degree |
180° |
|||
|
Length
overall (stand-on platform up) mm |
1805 |
1970 |
||
|
Width
overall
mm |
850 |
|||
|
Length of fork
mm |
1000 |
1150 |
||
|
Width
of fork outer
mm |
685/560 |
|||
|
Width
of A fork
mm |
175 |
185 |
185 |
|
|
Service weight
kg |
725 |
750 |
970 |
1050 |
|
Fork
wheel dimension
mm |
Ø80x70x4pcs |
|||
|
Caster
wheel dimension
mm |
Ø180x50 |
Ø180x60 |
||
|
Drive wheel
dimension
mm |
Ø250x 80 |
Ø270x90 |
||
|
Triple
mast , larger battery capacity and special specifications can be provided
according to customer’s
demand. |
||||
|
Fork
tilt can be ordered
according to customers’ demand. |
||||
|
|
|
