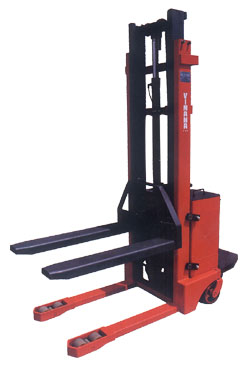

SM Series |
|
Features 2.The
turning radius of 1350mm is small and is suitable for working at
narrow aisles. 3.We
use large sized castor wheel and tandem wheel for fork in order to
increase stability
in bumpy floors. 4.
Drive wheels including transmissions and controllers are
imported from European, USA and Japanese
reputable and reliable famous brand for highest
quality and efficient operation with low
maintenance cost. 5.This
unit is low power consumption and battery used can either be EB class
or
industrial type. 6.Standing
platform is one of our standard features for easy operation. 7.Micro-based
battery charger is used to prolong the battery life. 8.The
machine is painted with powder coating which is to prevent rust and
corrosion. |
|
|
Model |
SM-1025 |
SM-1225 |
|
Loading
capacity
kg |
1000 |
1200 |
|
Load
center
mm |
500 |
|
|
Fork
lowest position
mm |
90 |
|
|
Fork
highest position
mm |
2500 |
|
|
Mast
lowest position
mm |
1780 |
|
|
Mast
highest position
mm |
2920 |
|
|
Lifting
speed (unload/loaded)
m/min |
9.0/6.0 |
|
|
Lowering
speed (unloaded/loaded) m/min |
Lower
by weight, adjustment. |
|
|
Traveling
speed (unloaded/ loaded)
km/hr |
4.0/3.0 |
|
|
Grade
ability (unloaded/loaded)
％ |
10/6 |
10/5 |
|
Min.
turning radius
mm |
130 |
|
|
Min.
90°stacking aisle width
mm |
1740 |
|
|
Battery
capacity /5hr (EB or VS class ) |
12V160AH
(optional) |
|
|
Max.
charging current |
12V25A |
|
|
Drive
motor |
12V750W |
|
|
Speed
control |
Resistor 3 speeds |
|
|
Lift
motor |
12V1500W |
|
|
Steering
system |
Steering arm |
|
|
Steering
turning angle degree
|
185° |
|
|
Length
overall (stand-on platform up)
mm |
1595 |
|
|
Width
overall
mm |
760 |
|
|
Length
of fork
mm |
1000 |
|
|
Width
of fork outer
mm |
685 |
|
|
Width
of A fork
mm |
175 |
|
|
Service
weight
kg |
520 |
560 |
|
Fork
wheel dimension
mm |
Ø80x70x4pcs |
|
|
Caster
wheel dimension
mm |
Ø180x50x2pcs |
|
|
Drive
wheel dimension
mm |
Ø250x80 |
|
|
Accept
order for special height and fork size. |
||
Specifications are subject to change for improvement without notice.
|
|
|
